Produced Sand Sampler PSS

Produced Sand Sampler

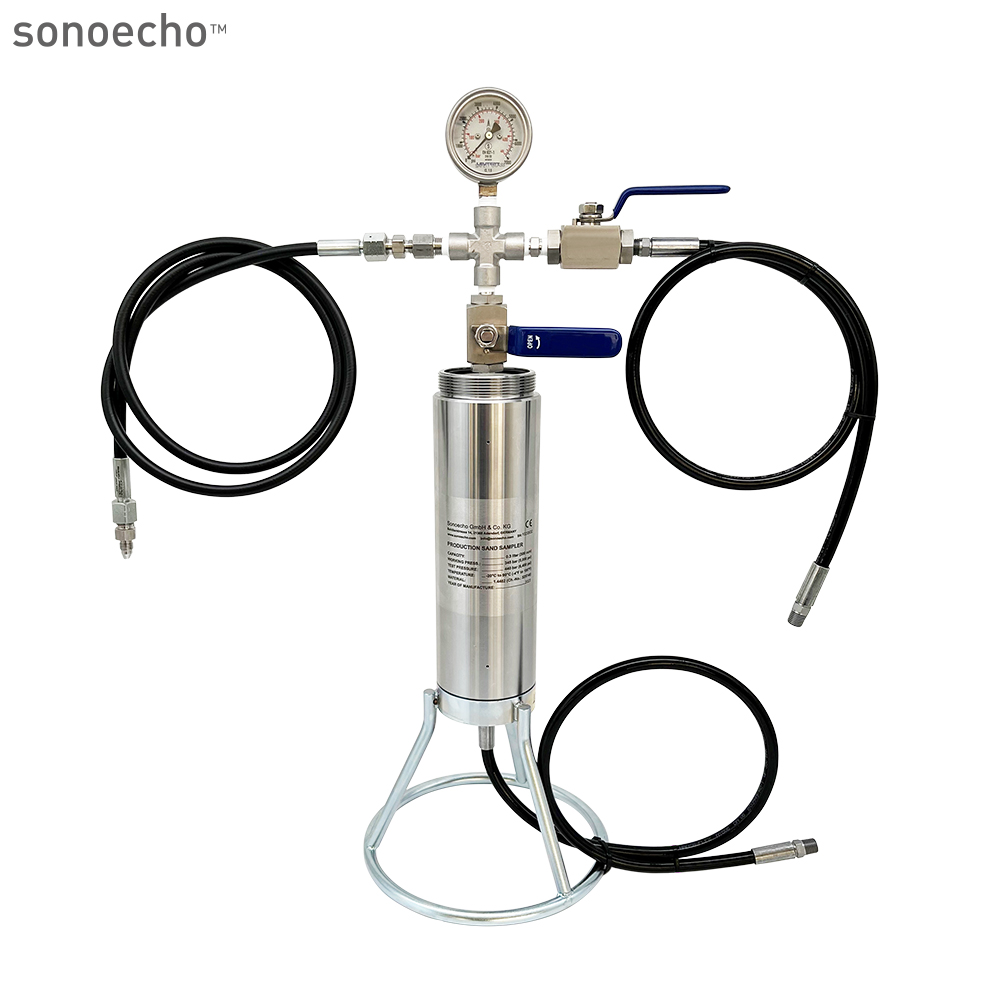

The Leutert Produced Sand Sampler is used to collect physical samples of sand from the flow line of a well. The sampler is used by many oil and gas companies due to its reliability. The volume of collected sand is representative and allows calculating the sand volume produced by a well. Sand samples should be taken from all wells routinely to determine which wells are causing sand build-up.

The flow-through sand sample cylinder is equipped with one inlet valve and an integrated mesh of different mesh sizes. The cylinder tube can be separated into two parts and the mesh may be changed. By changing the mesh size, a maximum of sand can be filtered without causing high pressure in the device by blocking the pores. The inlet valve of the sample cylinder is fitted with a rupture disc for any unforeseen pressure build-ups.



Max. operating pressure: 2,900 psi (200 bar), other on request
Max. temperature: 150 °F (65 °C)
Sample volume: 300 ccm, other on request
Length: 19" (490 mm) incl. caps and valves
Diameter: 3.5" (89 mm)
Weight: 26.5 lbs (12 kg)
Mesh size: 20, 50, 100, 500 microns
Medium: suitable for gas and oil
