The quickclamp load cell is easy to use for a quick qualitative look at pump performance. The quickclamp load cell is a precision polished-rod load cell that uses the latest sensor technology to accurately measure smaller changes in rod loads than other similar devices.

The cost-effective transducer can fit all sizes of polished rods, eliminating the need for separate transducers for each rod size. Three changeable jaw sets engraved with sizes 1-1/8”, 1-1/4” and 1-1/2” are available to permit an easy change-out of the load cell’s interior jaws for different rod sizes. Users can quickly fine-tune the device to variations in rod diameter by adjusting the ball seat on the clamp. This allows for fast hand-operated clamping action, for an easy tool-free installation which reduces set-up time.

The transducer’s high sensitivity to changes in the load weight provides a more detailed dynamometer card which allows for accurate rod pump analysis. Precision stainless steel moving parts provide for a reliable field operation. And, the on-board thermal correction provides excellent stability in harsh oilfield conditions.

The quickclamp load cell transducer clamps to the polished rod below the carrier bar in a quick set-up motion. The load cell does not change the relationship between the pump and the barrel, making it ideal for a quick dynamometer analysis. With the sonoecho™ software, the quickclamp load cell allows easy gathering of surface pump cards, calculation of downhole pump cards, standing valve check and traveling valve checks. This allows complete pumping unit diagnostics.

The sonoecho™ dynamometer software has a special selection for the quickclamp load cell that allows for easy calibration and data collection.

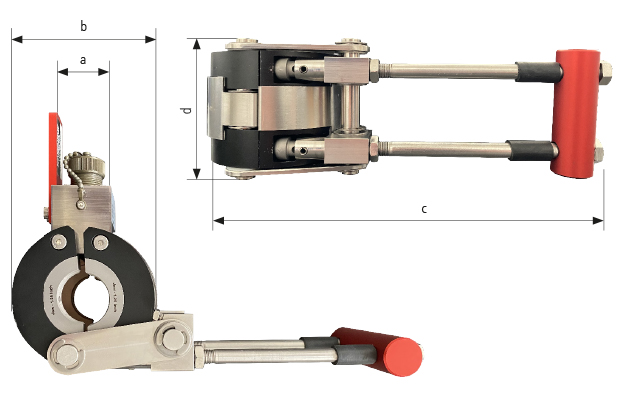

Dimensions:
• a 38.1 mm (1.5”)
31.75 mm (1.25”)
28.575 mm (1.125”)
• b 92 mm (3.622“)
• c 265 mm (10.433”)
• d 85 mm (3.346“)
Weight:
• Accelerometer 2.45 kg (5.4 lbs)
Max. stroke:
• Accelerometer no restriction
Power supply: rechargeable battery, wireless charge
Operating temperature: -20 to 60°C (-4 to 140°F)
Continuous operation: up to 10 days
Memory capacity: unlimited
Certifications: CE
